'EASYFLEX' EFB240

Braided Flexible Sprinkler Hose

Size
24″ – 72″

Pressure Rating
175 PSI

Connection
Threaded

Ask For A Quote

Length:

Quantity:

Certified by

Eliminates the need of pipe cutting and midline connections, significantly reduce labor and installation costs
Offers top-loading or front-loading brackets for a variety of ceiling and wall applications: T-Bars, metal studs, hat channels,
wood beams, concrete sidewalls, etc
No hangers and seismic escutcheons required
Required torque to assemble reducer and nipple with the flexible hose: 50 ft-lb
Manufactured and tested in accordance with NFPA 13, 13D, 13R, 13 Section 9.2.1.3.3.3; ASTM C635, C636; FM Class 1637, UL 2443; IBC Section 1621 / AMCE 7 9.6.2.6.2 & 9.6.2.6.2.2
Applicable for commercial, hotel, retail, restaurants, cultural, entertainment, educational, government, healthcare
and religious buildings

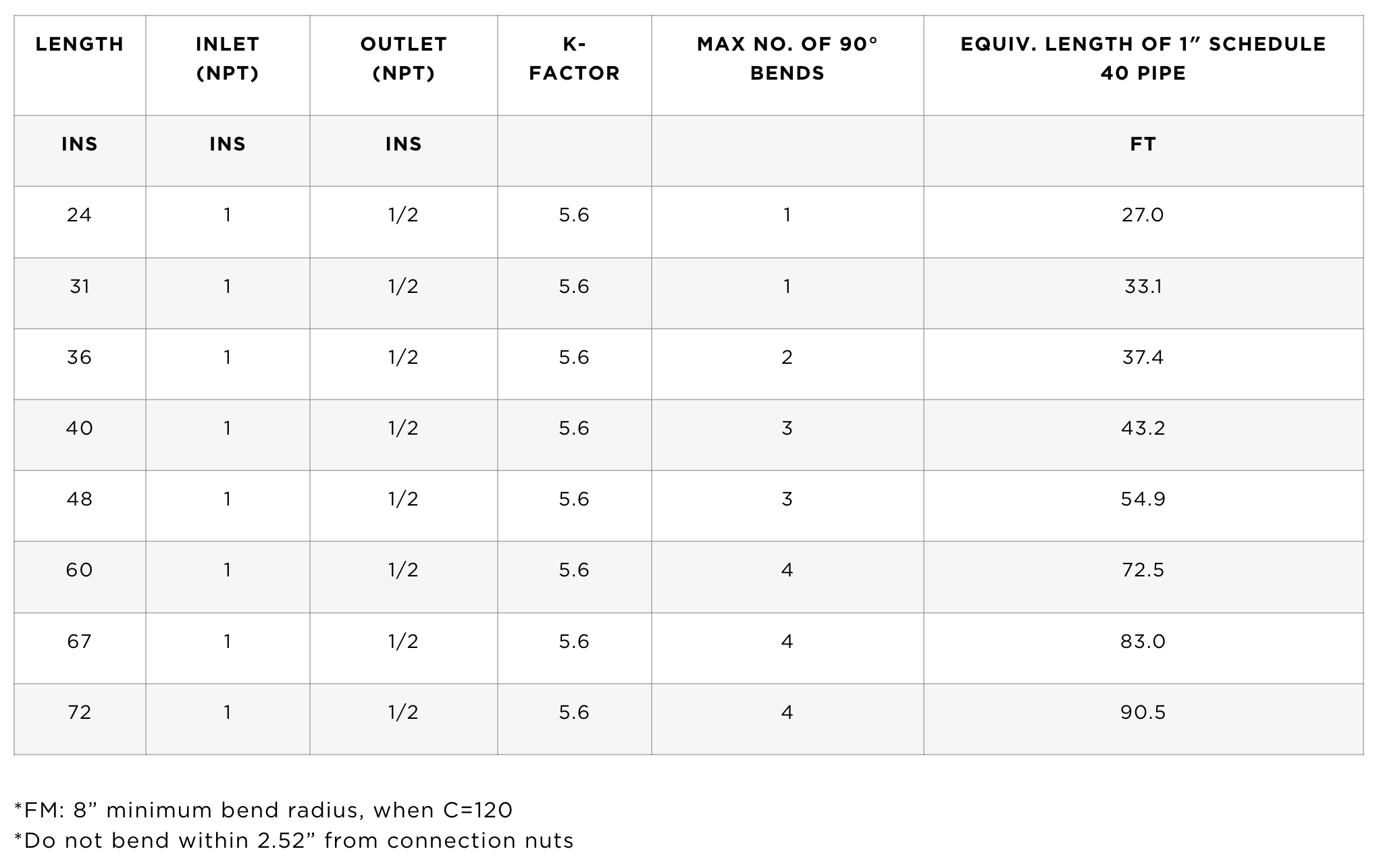

LENGTH	INLET (NPT)	OUTLET (NPT)	K-FACTOR	MAX NO. OF 90° BENDS	EQUIV. LENGTH OF 1" SCHEDULE 40 PIPE
IN	IN	IN			FT
24	1	1/2	5.6	1	27.0
31	1	1/2	5.6	1	33.1
36	1	1/2	5.6	2	37.4
40	1	1/2	5.6	3	43.2
48	1	1/2	5.6	3	54.9
60	1	1/2	5.6	4	72.5
67	1	1/2	5.6	4	83.0
72	1	1/2	5.6	4	90.5

Working Pressure: 175 PSI

Testing Pressure: Shell: 350 PSI

Working Temperature: Max 225 °F
