Short Radius 45° Elbow

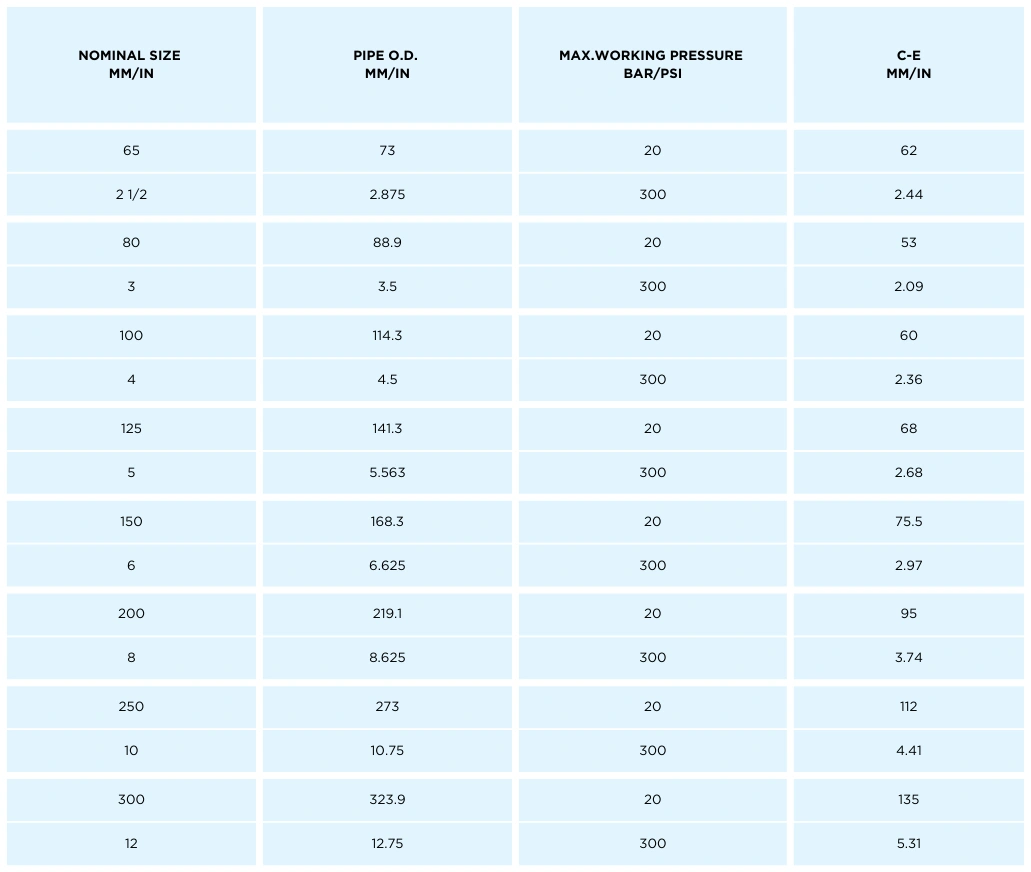

Sizes available:
65 mm – 300 mm / 2 1/2” ~ 12”

Working Pressure:
Up to 20 bar / 300 psi
Maximum working pressures are CWP (cold water pressure)or maximum allowed working pressure within the service temperature range of the gasket used in the coupling, based on standard wall or sch. 7/10/40 steel pipe, cut or roll-grooved to ANSI/AWWA C606-04 specifications. These ratings may occasionally differ from the maximum working pressures listed and/or approved by UL, ULC, and/or FM as testing conditions and test pipes differ

Pipe Coating:
Red Enamel

Pipe Material:
Cast of Ductile Iron
