'AFA' FIG98

Silent Check Valve (PN16)

Size
50 – 350 mm

Pressure Rating
PN16

Connection
Flanged Connection

Ask For A Quote

Dimension:

Quantity:

Certified by

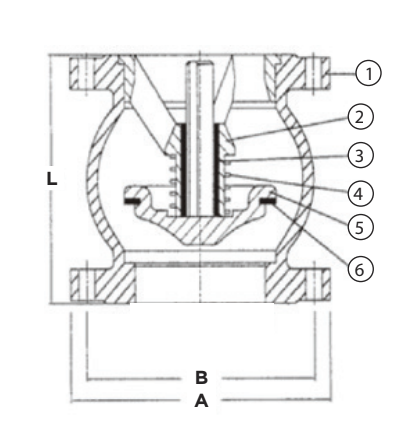

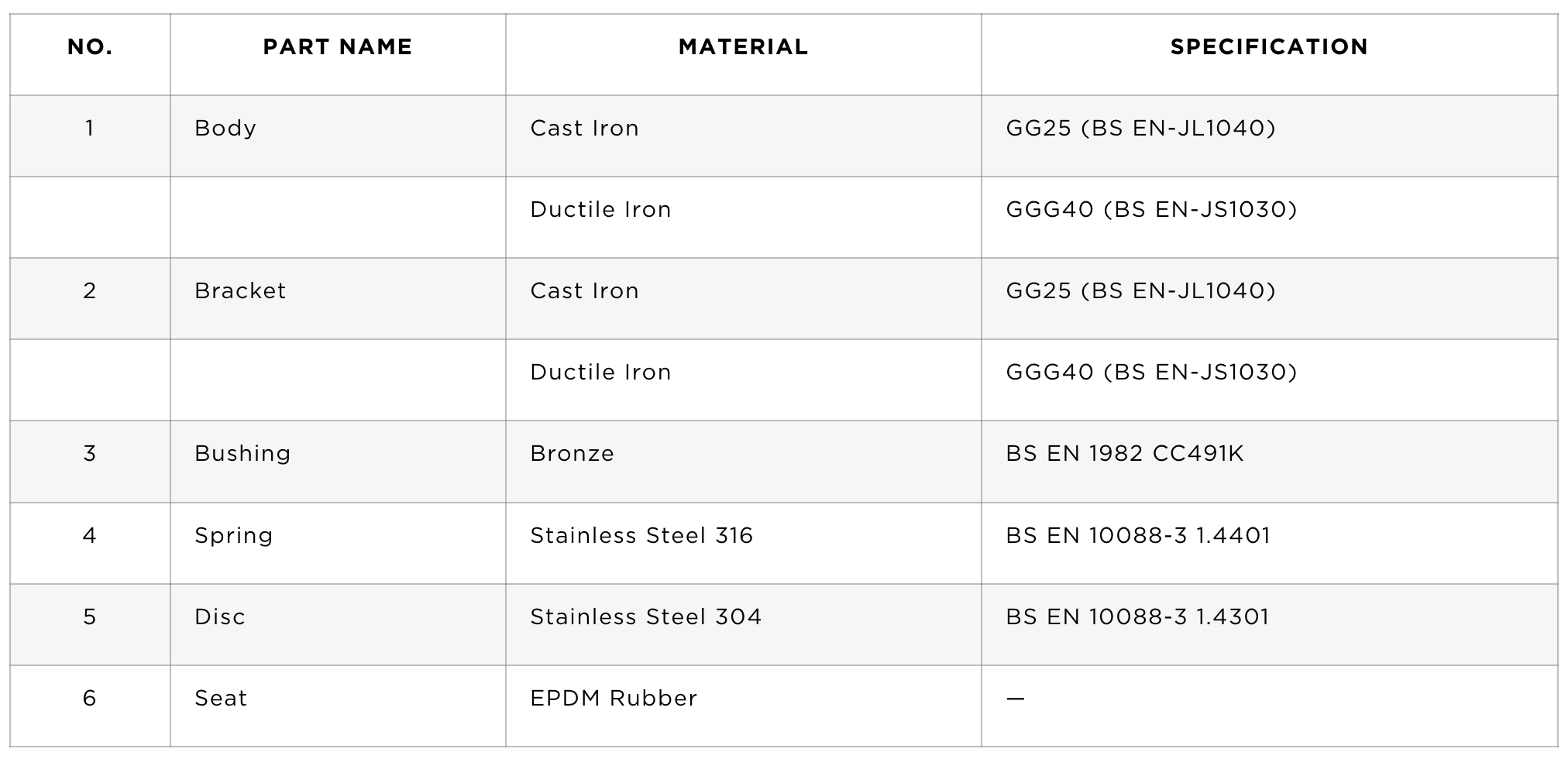

NO.	PART NAME	MATERIAL	SPECIFICATIONS
1	Body	Cast Iron	GG25 (EN-JL1040)
1	Body	Ductile Iron	GGG40 (EN-JS1030)
2	Bracket	Cast Iron	GG25 (EN-JL1040)
2	Bracket	Ductile Iron	GGG40 (EN-JS1030)
3	Bushing	Bronze	BS EN 1982 CC491K
4	Spring	Stainless Steel 316	BS EN 10088-3 1.4401
5	Disc	Stainless Steel 304	BS EN 10088-3 1.4301
6	Seat	EPDM Rubber

Spring-loaded, non-slam design
Operates in any position
Hydrostatically tested to BS EN 12266-1:2012
Flanged to BS 4504 PN16 / EN1092-2 PN16 / JIS B 2212 10K / ANSI B16.5 Class 150 / BS 10:1962 Table E
Applicable for HVAC Systems, Fire Protection System, Plumbing / Sanitary Systems

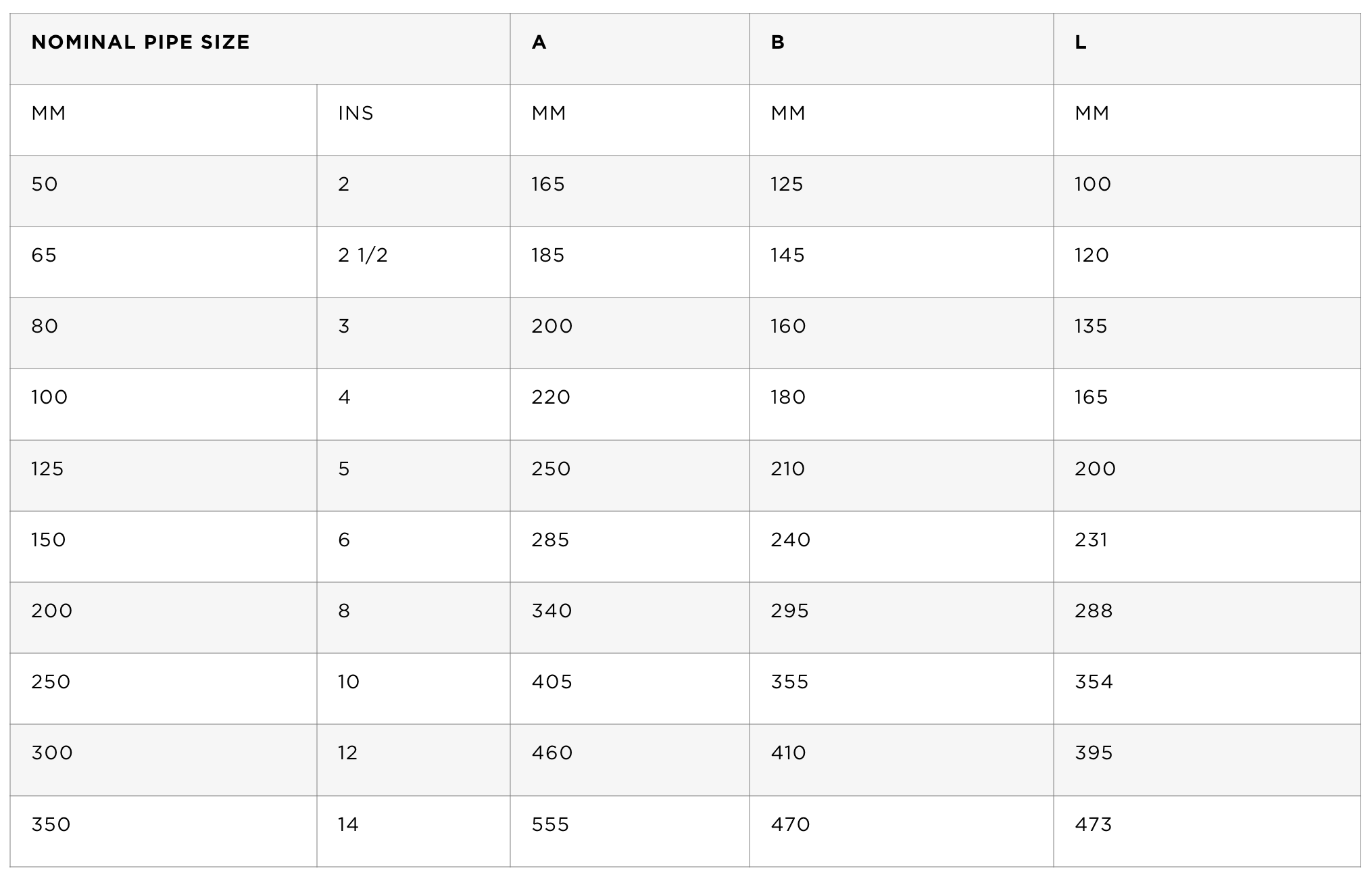

NOMINAL PIPE SIZE		A	B	L
MM	IN	MM	MM	MM
50	2	165	125	100
65	2 1/2	185	145	120
80	3	200	160	135
100	4	220	180	165
125	5	250	210	200
150	6	285	240	231
200	8	340	295	288
250	10	405	355	354
300	12	460	410	395
350	14	555	470	475

Working Pressure: 16 Bar

Testing Pressure: Shell: 24 Bar | Seat: 17.6 Bar

Working Temperature: 110°C

Typical Application: Water, Warm Water, Sea Water
